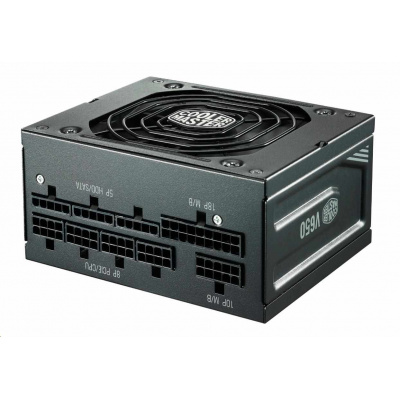

V650 SFX GOLD
FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY
- 80 Plus Gold Efficiency
- SFX Form Factor
- SFX-to-ATX Bracket
- 80 Plus Gold Certified
- Full-modular Cabling
- 10 Year Warranty
TECHNICAL SPECIFICATIONS
ATX Version | SFX 12V Ver.3.42 |
PFC | Active PFC |
Input Voltage | 90-264 V |
Input Current | 8-4A |
Input frequency | 47-63 Hz |
Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
Fan Size | 92 mm |
Fan Bearing | FDB |
Efficiency | 90% Typical Load |
80 Plus Rating | 80 PLUS Gold |
ERP 2014 Lot 3 | Yes |
Operating Temperature | 0-50°C |
Power Good Signal | 100-500 ms |
Hold Up Time | 16ms |
MTBF | >100,000 Hours |
Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
ATX 24-pin Connectors | 1 |
EPS 4+4 pin Connectors | 1 |
EPS 8-pin Connector | 1 |
SATA Connectors | 8 |
Peripheral 4-pin Connectors | 4 |
PCI-E 6+2 pin Connectors | 4 |
Series | V Gold Series, V SFX Gold Series |
80 PLUS | Gold |
Modular | Full Modular |
Wattage | 500 to 750 W |
.
Formát zdroje:
SFX
Konektory:
PCIe 8-pin
Konektory:
8pin CPU 2x
Konektory:
PCIe 6-pin
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
650
Aktuální cena produktu je4138Kč
s dph
