HPE PL DL380g11 6426Y (2.5/16C) 32G MR408i-o/4G 8SFF 1000W 2x10G-T iLO6 2U
SKU Number P60636-421
Model Name HPE PL DL380g11 6426Y (2.5/16C/38M/4800) 32G MR408i-o/4G 8-26SFF 1000Wtit 2x10G iLO6 base-T 2U NBD333
Chassis 8SFF NC CTO Server (P52534-B21)
CPU 6426Y (16 core, 2.0GHz, 185W)
Number of CPU One with standard heatsink
Memory 32 GB RDIMM 2R 4800 MT/s (1x 32 GB)
Network Controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Storage Controller HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller and Smart Storage Battery
Hard Drive None Included
Internal Storage 8 SFF CTO Server (upgradeable to 24 SFF front + 2SFF rear)
PCIe Slots 3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2 processor configuration
Power Supply 1x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (-421)
Fans 4 Standard
Management HPE iLO 6
Security Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit SFF Easy Install Rail Kit; cable management arm
Energy Star Energy Star 3.0
Form Factor 2U Rack
Warranty 3-year parts, 3-year labor, 3-year onsite support with next business day response.
HPE ProLiant DL380 Gen11 Specifications

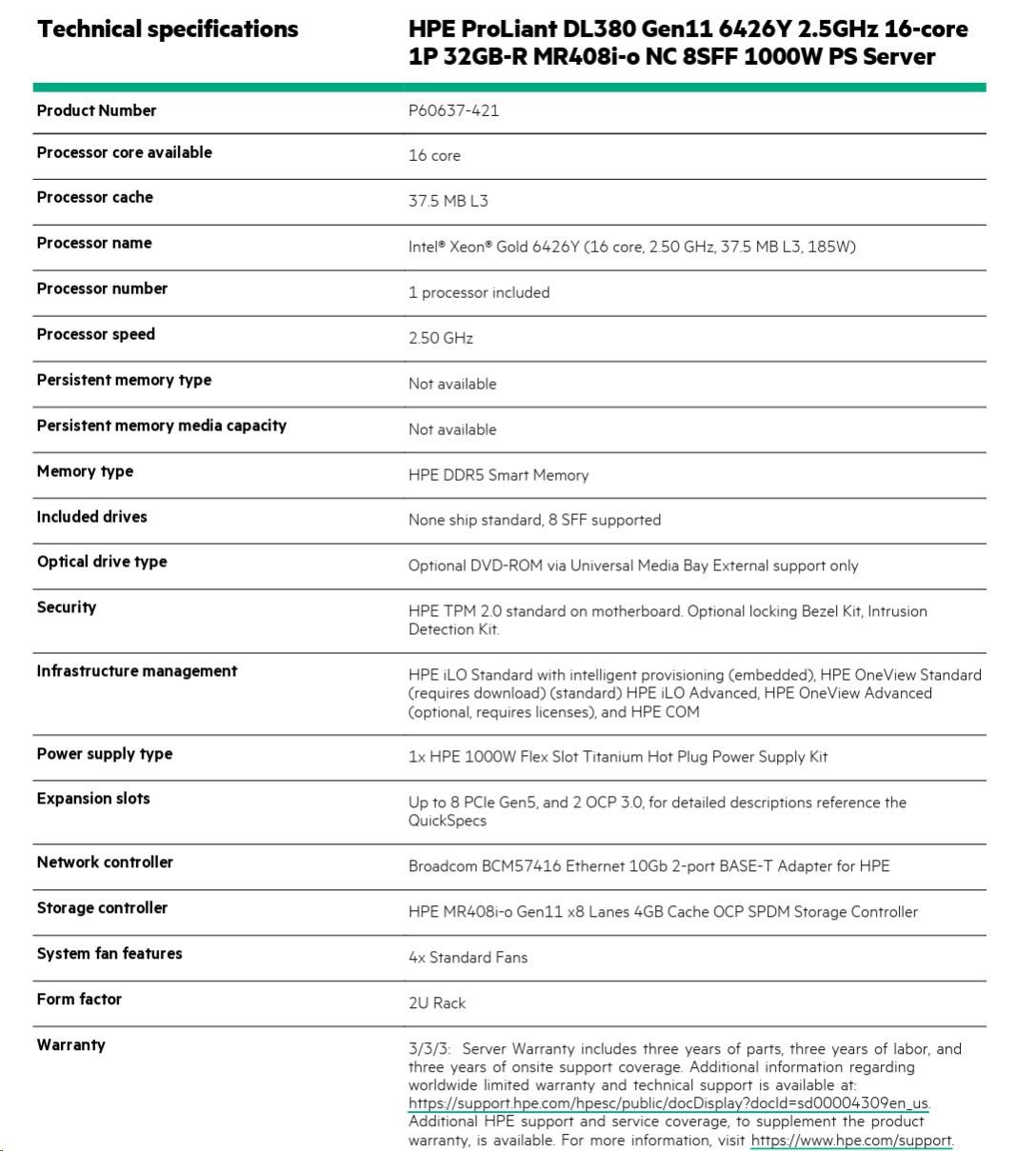

Technical Specifications: HPE ProLiant DL380 Gen11
| Product Number | P60637-421 |
|---|---|
| Processor | Intel® Xeon® Gold 6426Y (16 core, 2.50 GHz, 37.5 MB L3, 185W) |
| Processor Cores | 16 cores |
| Processor Cache | 37.5 MB L3 |
| Processor Included | 1 |
| Memory Type | HPE DDR5 Smart Memory |
| Installed Memory | 32 GB |
| Persistent Memory | Not available |
| Drive Bays | 8 SFF supported (no drives included by default) |
| Optical Drive | Optional DVD-ROM via Universal Media Bay (external only) |
| Security | HPE TPM 2.0 standard, Optional Locking Bezel Kit, Intrusion Detection Kit |
| Infrastructure Management | HPE iLO Standard (embedded), HPE OneView Standard (download required) Optional: HPE iLO Advanced, HPE OneView Advanced (licenses required), HPE COM |
| Power Supply | 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Expansion Slots | Up to 8x PCIe Gen5 slots, 2x OCP 3.0 slots (Detailed specs in QuickSpecs) |
| Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T |
| Storage Controller | HPE MR408i-o Gen11, x8 Lanes, 4GB Cache, OCP SPDM |
| System Fans | 4x Standard Fans |
| Form Factor | 2U Rack |
| Warranty | 3 Years Parts / 3 Years Labor / 3 Years Onsite Support Warranty Info HPE Support |
| Dimensions (Metric) | 60 x 99.8 x 27.3 cm |
| Weight | 41.32 kg |
