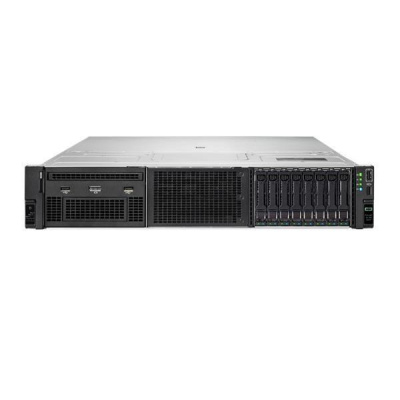

HPE PL DL380g11 6526Y (2.8G/16C) 4x32G (p64706) NS204i-u(2x480g) 2x1000W 8SFF 2x10G-T Smart Choice
SKU Number P77241-425
Model Name HPE PL DL380g11 6526Y (2.8G/16C) 4x32G NS204i-u(2x480g) 2x1000W 8SFF 2x10G-T Smart Choice
Chassis 8SFF
CPU 6526Y(16 core, 2.8 GHz, 150W)
Number of CPU One with standard heatsink
Memory 4x32 GB, 5600 MT/s
Network Controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Storage Controller NS204 (2x480G m.2) HW raid 0,1,10
Hard Drive
Internal Storage 8-26SFF CTO Server (upgradeable to 24 SFF front + 2SFF rear)
PCIe Slots 3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2 processor configuration
Power Supply 2x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (-421)
Fans 4 Standard
Management HPE iLO 6
Security Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit SFF Easy Install Rail Kit; cable management arm
Energy Star Energy Star 3.0
Form Factor 2U Rack
Warranty 3-year parts, 3-year labor, 3-year onsite support with next business day response.
.
