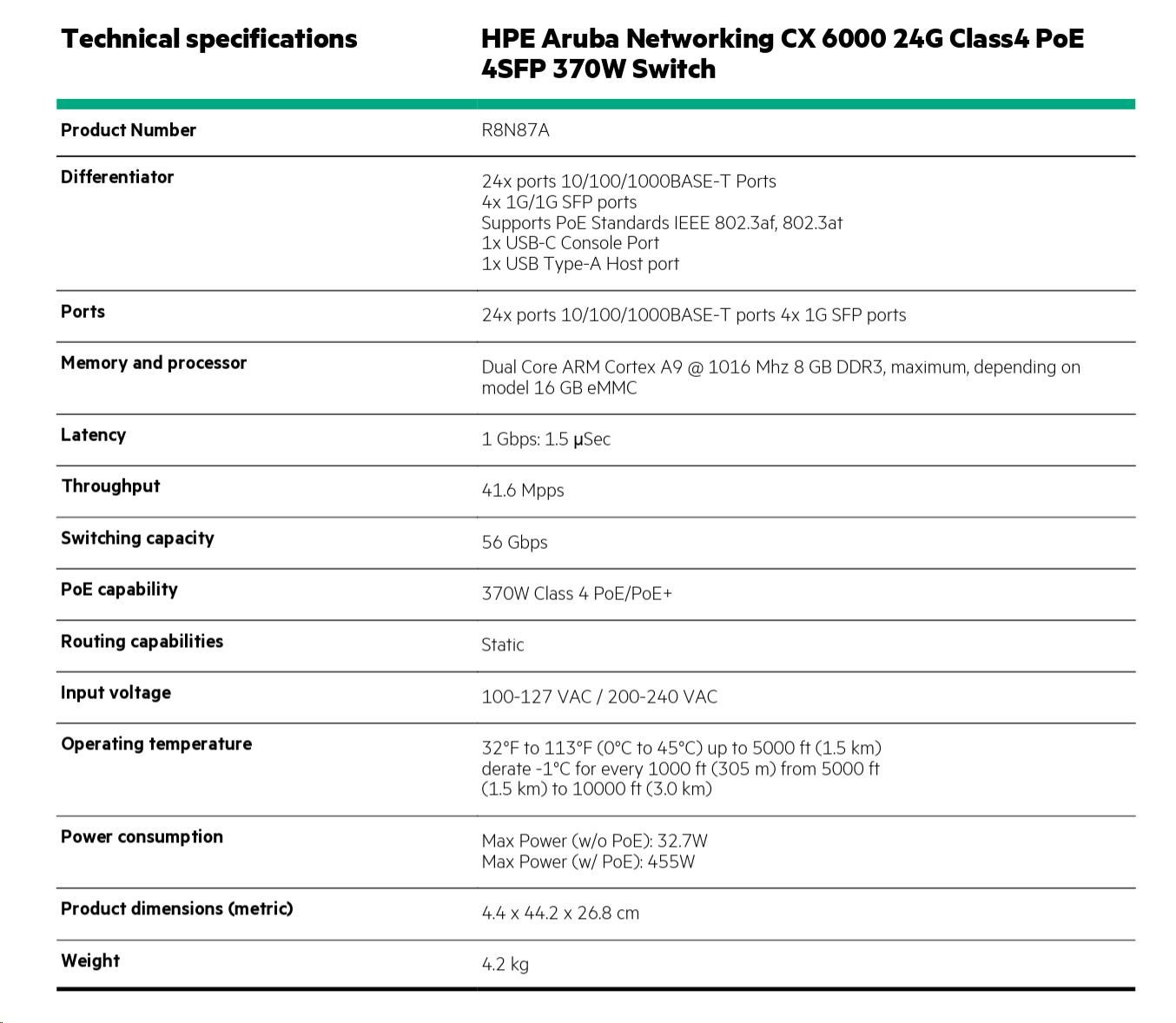

HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch R8N87A
HPE Aruba Networking 6000 Switch Specifications
HPE Aruba Networking 6000 Switch Specifications (comparison)
| Model | R8N85A 48G Class4 PoE 4SFP | R8N86A 48G 4SFP | R8N87A 24G Class4 PoE 4SFP |
|---|---|---|---|
| Description | 48x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host, PoE (802.3af/at) | 48x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host | 24x 10/100/1000BASE-T, 4x 1G SFP, USB-C Console, USB-A Host, PoE (802.3af/at) |
| Power Supply | Fixed, 370W PoE | Fixed | Fixed, 370W PoE |
| Fans | Fixed | Fixed | Fixed |
| Dimensions (H x W x D) | 4.39 cm x 44.2 cm x 30.48 cm | 4.39 cm x 44.2 cm x 24.74 cm | 4.39 cm x 44.2 cm x 26.82 cm |
| Weight | 5.02 kg | 3.42 kg | 4.19 kg |
| CPU | Dual Core ARM Cortex A9 @ 1016 MHz | ||
| Memory & Flash | 4 GB DDR3, 16 GB eMMC | ||
| Packet Buffer | 12.38 MB (4.5MB Ingress / 7.875MB Egress) | ||
| Switching Capacity | 104 Gbps | 104 Gbps | 56 Gbps |
| Throughput | 77.3 Mpps | 77.3 Mpps | 41.6 Mpps |
| Latency (1 Gbps, 64-byte LIFO) | 1.9 µs | 1.9 µs | 1.5 µs |
| Max SVIs | 16 | ||
| Host Tables (IPv4/IPv6) | IPv4: 1024, IPv6: 512 | ||
| Unicast Routes (IPv4/IPv6) | IPv4: 512, IPv6: 512 | ||
| MAC Table | 8192 | ||
| IGMP/MLD Groups | 512 each | ||
| ACL Entries (IPv4/IPv6/MAC) | 256 / 128 / 256 (ingress) | ||
| Operating Temp | 0°C to 45°C (derates above 1.5 km) | ||
| Operating Humidity | 15% to 95% @ 40°C (non-condensing) | ||
| Non-Operating Temp | -40°C to 70°C up to 4.6 km | ||
| Altitude (Op / Non-Op) | Max 3 km / 4.6 km | ||
| Sound Power / Pressure | 4.3 Bel / 29.8 dB | 3.6 Bel / 24.6 dB | 3.9 Bel / 24.3 dB |
| Airflow | Side-to-side | ||
| AC Power | 100-127V / 200-240V, 4.9A / 2.4A | 100-127V / 200-240V, 0.8A / 0.5A | 100-127V / 200-240V, 4.6A / 2.3A |
| Power Consumption (230V) | Idle: 30.6W, Max: 45W / 480W (w/ PoE) | Idle: 20.6W, Max: 44.2W | Idle: 22.9W, Max: 32.7W / 455W (w/ PoE) |
| Mounting | Rack, surface, or wall (kit included) | ||
| Compliance - Safety | IEC/EN/UL/CSA 62368-1 (2014/2018) | ||
| Compliance - Emissions | FCC, EN, VCCI, ICES, AS/NZS CISPR 32 Class A | ||
| Compliance - Lasers | IEC/EN 60825-1:2014, Class 1 (transceivers) | ||
| Compliance - Immunity | CISPR 35:2016, EN 55035:2017, IEC 61000 (series) | ||
Maximální počet portů:
24
Technologie:
Gigabit Ethernet 1000Mbps
Management:
SNMP/RMON
Vlastnosti switche:
Funkce POE po portech
Provedení:
Rack mounted 19"
PoE budget (W):
370
Přenosová rychlost LAN (Mb/s):
570
Funkce:
QoS (Quality of service)
Funkce:
VLAN (virtual local area network)
Funkce:
PoE (Power over ethernet)
Funkce:
L3
Počet SFP portů:
4
Maximální počet portů:
24
Počet SFP portů:
4
PoE budget (W):
370
Aktuální cena produktu je19406Kč
s dph
